Needle Valves

Bar stock needle valves are designed for operation up to 10,000 PSI rating. With standard PFTE stem packing & self centering non-rotating stem, our needle valves give in service total sealing security and easy manoeuvrability.

General features

  • Tee bar easily maneuverable with minimum effort
  • PTFE packing standard, optional Grafoil
  • Stainless steel construction as standard
  • Externally adjustable gland
  • Variety of end connections
  • Dust cap to prevent contamination on the operating thread

General specifications

  • Pressure up to 10,000 PSI (690 Bar)
  • Temperature rating PFTE packing from -73°C to 210°C (-99°F / +410°F)
  • Temperature rating Grafoil packing from -54°C to +510°C (-65°F / +950°F)
  • Standard orifice diameter 4.0 mm
  • Standard 316L stainless steel (other materials available)

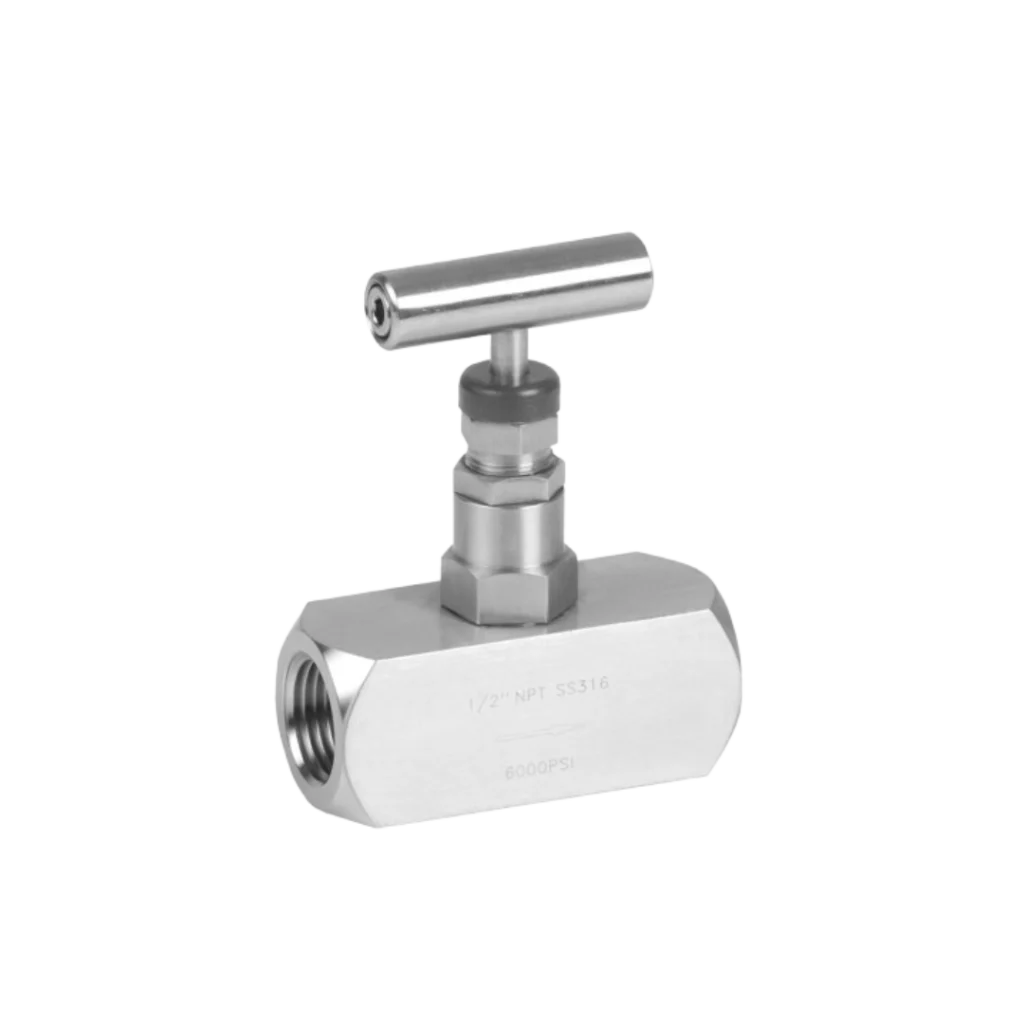

Needle Valve Female x Female

  • S6NF44S 6,000 PSI / S10NF44S 10,000 PSI
    • Inlet ¼” – Outlet ¼”
  • S6NF66S 6,000 PSI / S10NF66S 10,000 PSI
    • Inlet ⅜” – Outlet ⅜”
  • S6NF88S 6,000 PSI / S10NF88S 10,000 PSI
    • Inlet ½” – Outlet ½”
  • S6NF1212S 6,000 PSI / S10NF1212S 10,000 PSI
    • Inlet ¾” – Outlet ¾”
  • S6NF1616S 6,000 PSI
    • Inlet 1″ – Outlet 1″

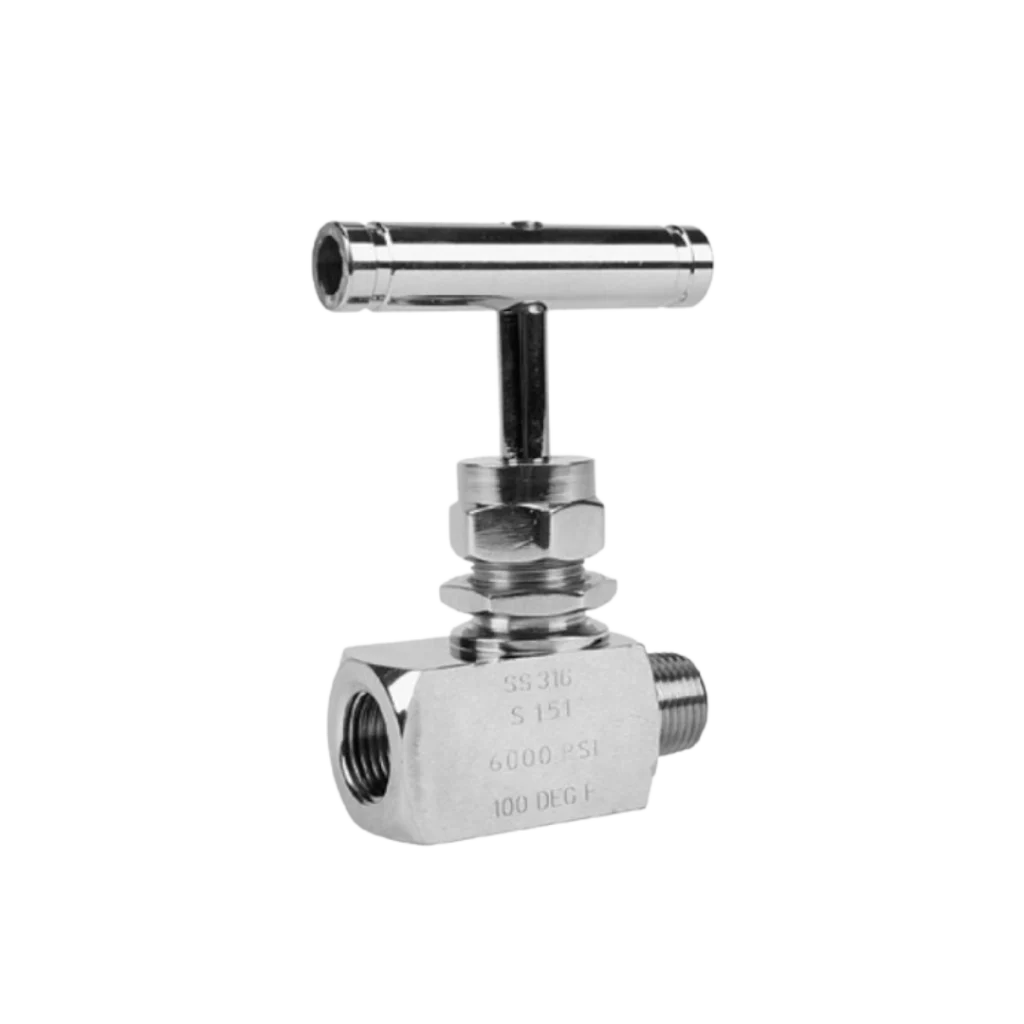

Needle Valve Male x Female

  • S6NM44S 6,000 PSI / S10NM44S 10,000 PSI
    • Inlet ¼” – Outlet ¼”
  • S6NM66S 6,000 PSI / S10NM66S 10,000 PSI
    • Inlet ⅜” – Outlet ⅜”
  • S6NM88S 6,000 PSI / S10NM88S 10,000 PSI
    • Inlet ½” – Outlet ½”
  • S6NM1212S 6,000 PSI / S10NM1212S 10,000 PSI
    • Inlet ¾” – Outlet ¾”
  • S6NM1616S 6,000 PSI
    • Inlet 1″ – Outlet 1

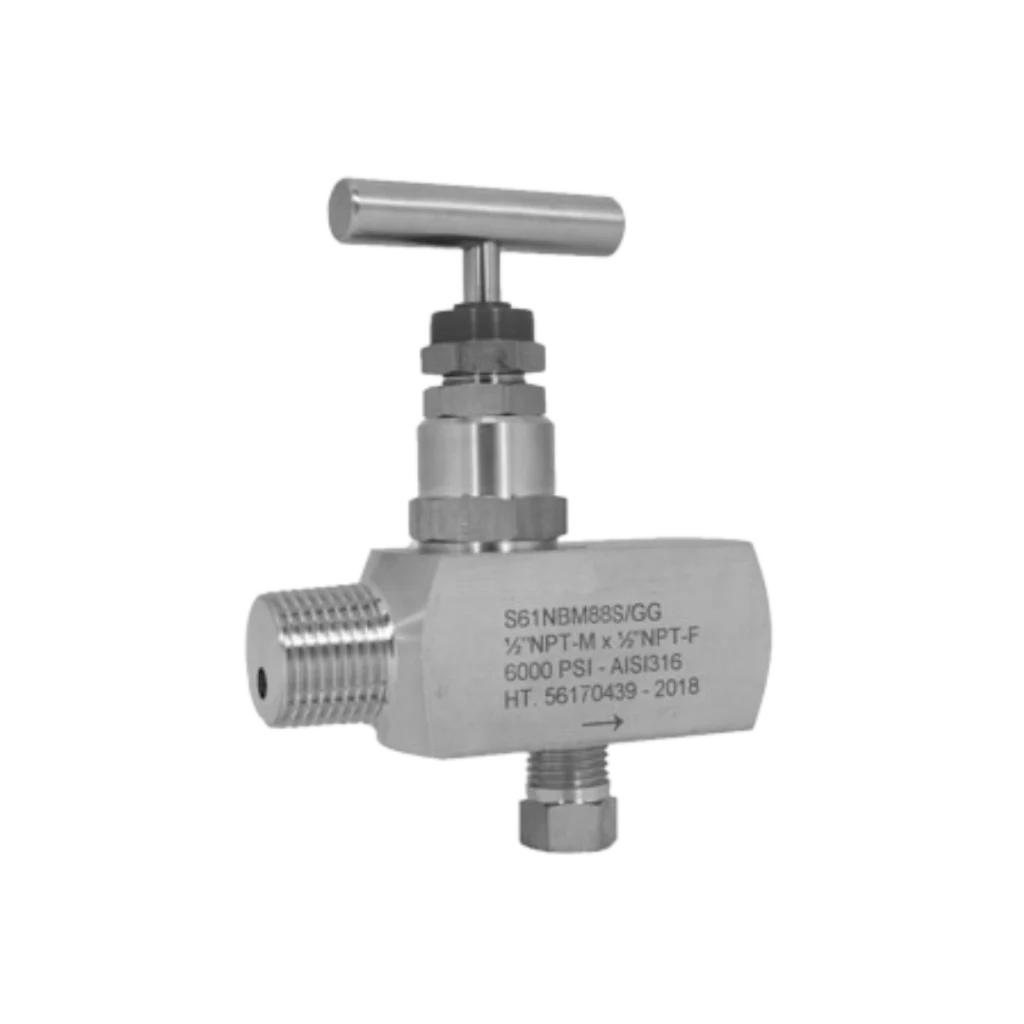

Gauge Bleed Male x Female

  • S61NBM88S 6,000 PSI
  • Inlet ½” – Outlet ½”

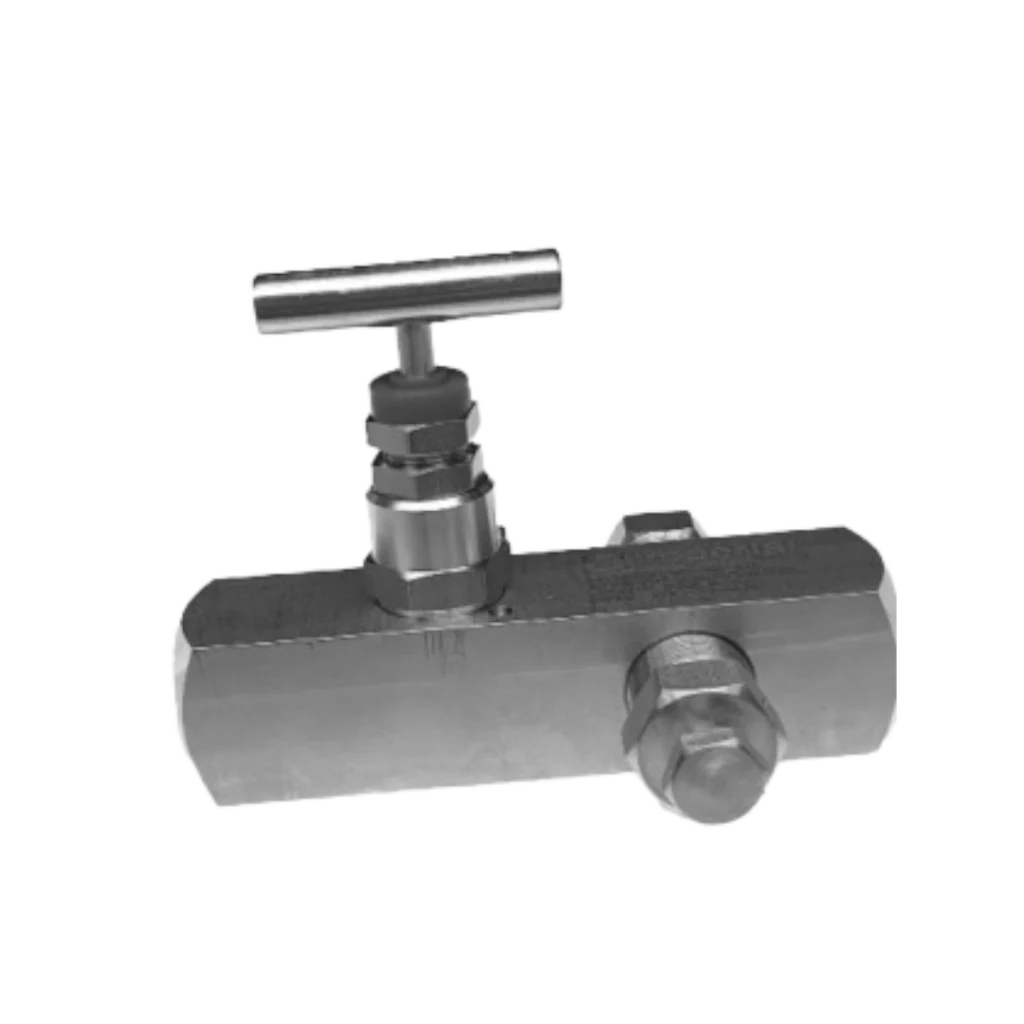

Gauge Multiport Female x Female

  • S61NTF88S 6,000 PSI
  • Inlet ½” – Outlet ½”

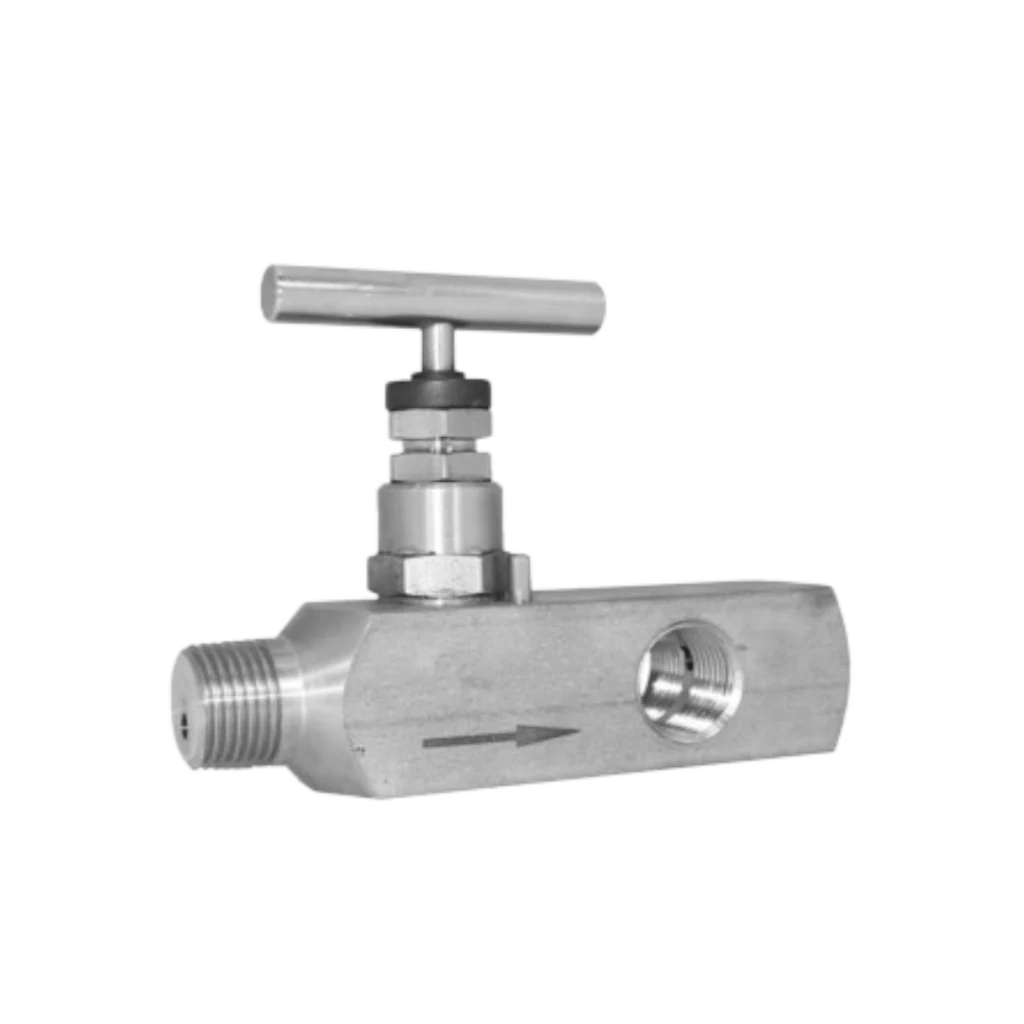

Gauge Multiport Male x Female

  • S61NTM88S 6,000 PSI
  • Inlet ½” – Outlet ½”
